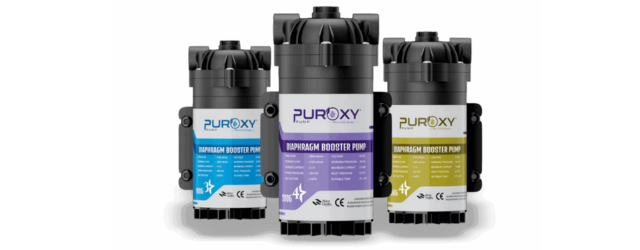

Booster Pump

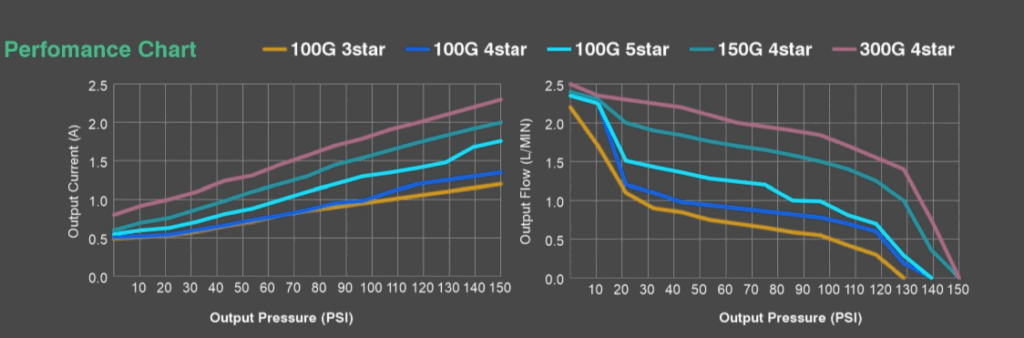

MODEL	100G 3star	100G 4star	100G 5star	150G 4star	300G 4star
Open Flow	≥1700 ml/min	≥1800 ml/min	≥1900 ml/min	≥2100 ml/min	≥2900 ml/min
Working Flow	≥1000 ml/min	≥1100 ml/min	≥1200 ml/min	≥1400 ml/min	≥2100 ml/min
Working Current	≤1.1 amp	<1.0 amp	<1.0 amp	<1.5 amp	≤2.1 amp
Bypass Pressure	150 PSI	150 PSI	150 PSI	160 PSI	160 PSI
Voltage	24 VDC	24 VDC	24 VDC	24 VDC	24 VDC
Maximum Current	≤1.3 amp	≤1.3 amp	≤1.3 amp	≤1.4 amp	≤2.3 amp
Inlet Pressure	20 PSI	20 PSI	20 PSI	20 PSI	20 PSI
Self Suction	≤2 mtr	≤2 mtr	≤3 mtr	≤3 mtr	≤4 mtr
Materials : Premium Bearings, EPDM Valves, Sentoperene Diaphragm and Nylon Housing

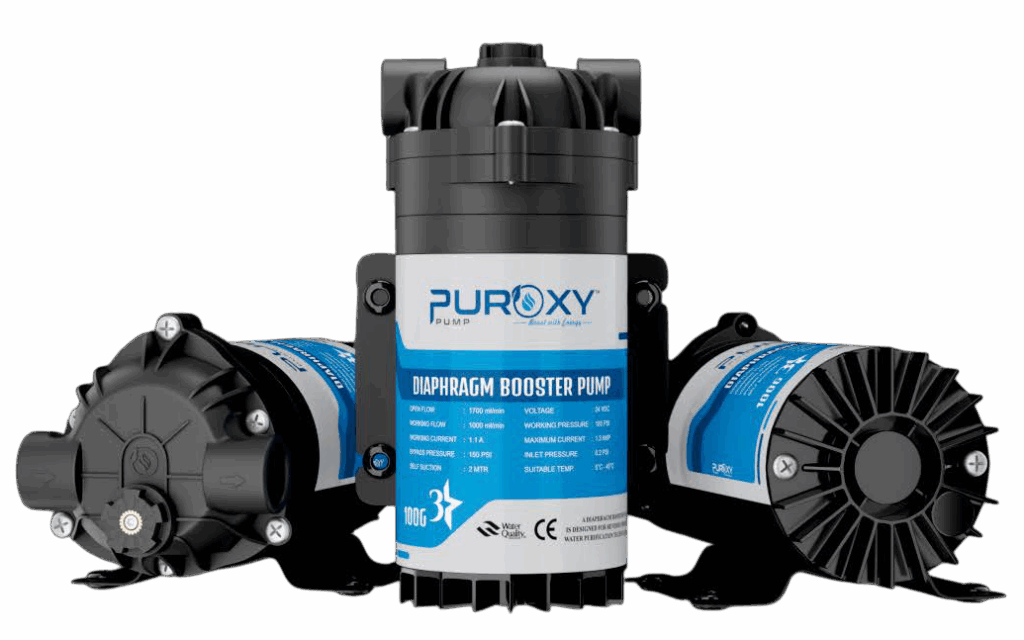

100G BOOSTER

150G BOOSTER
