Nano filtration membrane is a special and Functional semi-permeable membrane which Selectively allows certain LMW and low-valentlon to pass through .its desalination rate is Between 40-98%.lt can block the organic in the Range of 150-500 LMW, and it performs better In desalinating single valence anions solution. Now days, Nano membranes have been widely Used in many fields, including drinking water, Food processing, pharmaceuticals and biology Industry.
NF Membrane

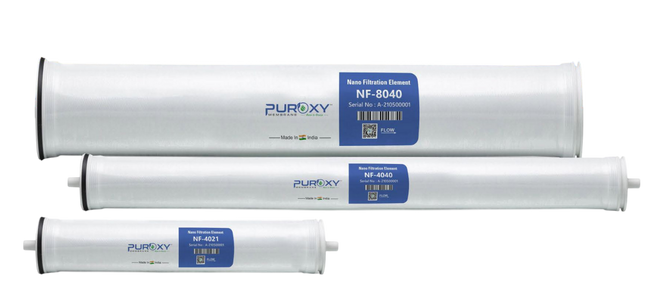

Nano Filtration (NF) Element
Specification And Main Performance Of Membrane Elements
| Model | Soltion | Stable Rejection | Average Permeated Flow(GPD) | Active Membrane Area ft2(M2) |
|---|---|---|---|---|
| NF-8040 | NaCI MgSO4 |
40~60 >96 |
10000 | 37 |
| NF-4040 | NaCI MgSO4 |
40~60 >96 |
2500 | 7.5 |
| NF-4021 | NaCI MgSO4 |
40~60 >96 |
1000 | 3.3 |

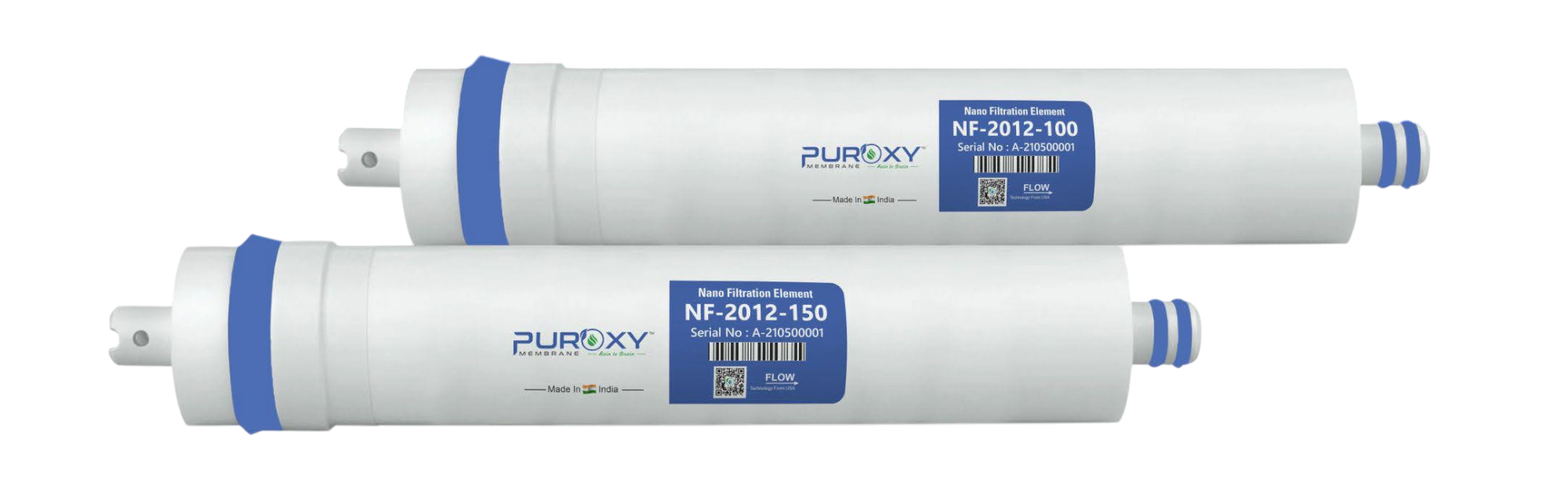

Residential Nano Filtration Membrane
Residencial Membrane Series
Puroxy Residential Reverse Osmosis Membrane Series Can Effectively Remove All Kinds Of Impurities And Pollutants In Water, Such As Organics, Microorganism, Heavy Metal Ions, Etc. It Is Widely Applied In Residential Water Filters, Commercial Water Filters ,compact Water Vending Machines, Etc. It Is Large In Output Water Flow, High In Salt Rejection, Stable In Performance. What More, With Strong Research And Development Ability, Puroxy Is Able To Customize All Kinds Of Reverse Osmosis Membranes For Varies Purposes.
Testing Conditions
| Testing Pressure | 90psi (0.62MPa) |
| Temperature of Testing Solution | 25c |
| Concentration of Testing Solution | 250ppm |
| pH value of Testing Solution | 7.5 |
| Recovery Rate | 15% |
Operation Limits and Conditions
| Max. Working Pressure | 300psi (2.07MPa) |
| Max. Working Feedwater flow | 2gpm |
| Max. Feedwater Temperature | 45c |
| Max. Pressure SDI | 5 |
| Max. Pressure Drop | 15psi(0.1MPa) |
| Residual Chlorine Decline | <0.1ppm |
| pH Range of Feedwater | 3.0-10.0 |
